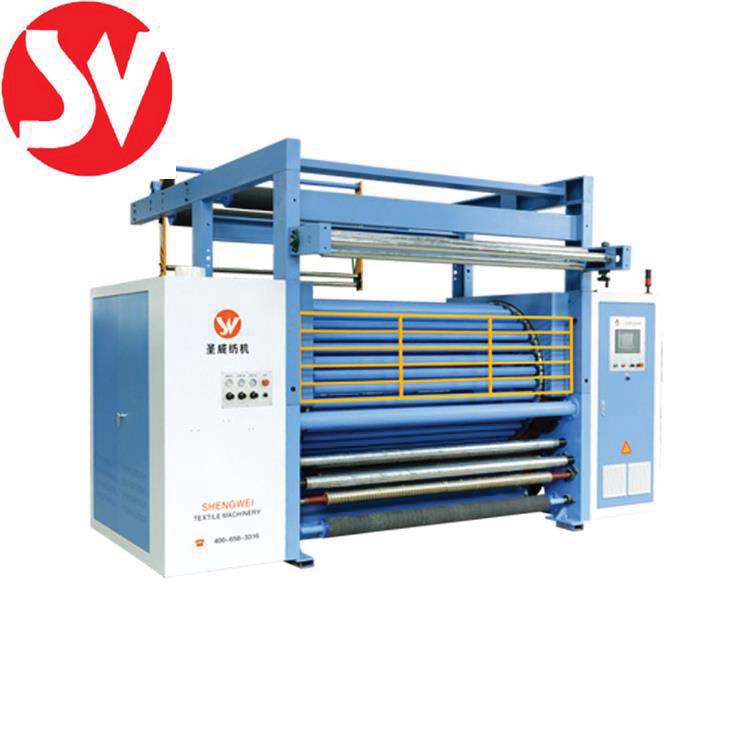

RMA Raising Machine with 36 Raising Rollers

APPLICATION

RMA raising machine has strong raising force and is suitable for fabric raising of noninverted
velvet, super soft velvet, waft knitted leather fabric, warp knitted micro suede
velvet, short pile velvet, woolen fabric, scarf etc.

Main Features

Control system Integrate design of mechanical and electrical technology.
Touch screen operation. PLC control and speed regulation by 6
inverters. It can store up to 500 sets of parameters.
Speed regulation control Speed of cylinder, fabric, fabric tension, raising force are controlled by inverters. It has multiple usages.
Raising rollers High strength thicken materials are used on roller body, which
are balance tested and are not easy to distort. Roller ends uses
force relief support design, which greatly increases the using
life of bearings and also increases their anti-bend ability.
Raising rollers' bearings Using Japan made NSK brand bearings, which are oil free
maintenance design and are with long using life.
It has functions of zero start, fabric auto guiding and failure
warning.
Pneumatic tensioning
belts of raising rollers
The belts are entirely in loose when it stops, which is easy for
cleaning broken fabric. Special designed transmission system
prolongs the use of belts.

Specifications

Type
RMA20 RMA22 RMA25 RMA26 RMA28
Width (mm)
2000 2200 2500 2600 2800
Fabric speed (m/min) 6-30 Inverter controlled speed
Cylinder speed (rpm) 60-90 Inverter controlled speed
Raising roller Dia. (mm) 70
Number of raising rollers 36
Motor power (KW)
Compressor not included
37.6(49)
Weight (kg)
6500 6600 6800 6900 7000
Dimensions (L*W*H)mm 3160*4380/4580/4880/4980/5180*3175
