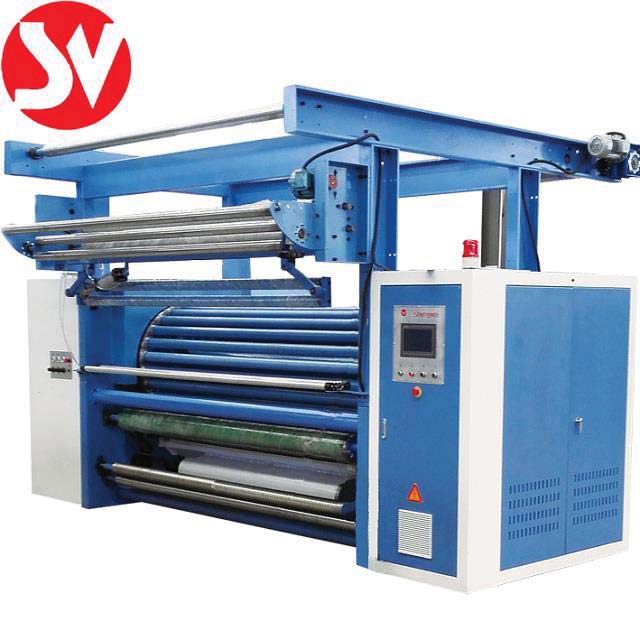

RMB Raising Machine with 24 Raising Rollers

APPLICATION

RMB is used for raising blankets, woolen fabric, knitted fabric, warp knitted fabric etc.

Main Features

Control system Integrate design of mechanical and electrical technology.
Touch screen operation. PLC control and speed regulation by 6
inverters. It can store up to 500 sets of parameters.
Speed regulation control Speed of cylinder, fabric, fabric tension, raising force are controlled by inverters. It has multiple usages.
Raising rollers High strength thicken materials are used on roller body, which
are balance tested and are not easy to distort. Roller ends uses
force relief support design, which greatly increases the using
life of bearings and also increases their anti-bend ability.
Raising rollers' bearings Using Japan made NSK brand bearings, which are oil free
maintenance design and are with long using life.
It has functions of zero start, fabric auto guiding and failure
warning.
Pneumatic tensioning
belts of raising rollers
The belts are entirely in loose when it stops, which is easy for
cleaning broken fabric. Special designed transmission system
prolongs the use of belts.

Specifications

Type

RMB7024

RMB8024

Applications

Blankets, Woolen fabric, Knitted fabric, Warp
knitted fabric

Super soft
velvet

Width mm

2000/2200/2500/2600/2800

Number of raising rollers pcs

24

Raising rollers diameter

70

80

Fabric speed m/min

6-30

Cylinder diameter

750

850

Cylinder speed rpm

60-100

Motor power KW Compressor not included

30

42

Compressor consumption

5.5-7.5

Weight

5800/5900/6100/6200/6300

Dimensions L*W*H
mm

34504180/4380/4680/4780/4980*3175
